Magnetic Rotary Encoder ASTEC
ASTEC/TAIHO PRODUCT

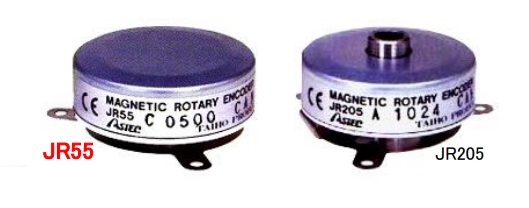

Magnetic Rotary Encoder Astec JR55 Series
Brochure JR55
JR55: Production is suspended right now
AB signals, Incremental.
Operating Tenperature: -10 degree C to + 80 degree C
with Open Collector JR55A, Voltage Output JR55C & Line Driver JR55D
Brochure JR105/205/215/305
JR Series stands against severe environments like high temperature, high humidity, vibrations, oil mist, dusts, etc.
JR105: Standard
Incremental Only : AB signals only
Resolution and other specifications : Same with JR205 above stated
JR205: Standard
Incremental + Index : AB+Z signals Resolution : 300, 360, 500, 1000, 1024, 2000 & 2048 ppr.
Operating Tenperature:
Open Collector JR205A and Voltage Output JR205C :-20 degree C to + 90 degree C :Line Driver JR205D :-30 degree C to + 90 degree C :
JR215: High Temperature Resitant
Incremental + Index : AB+Z signals Operating Tenperature: -20 degree C to + 115 degree C with Open Collector JR215A Other outputs : on special request
Resolution : 360, 500, 1000, 1024 ppr
JR305: High Humidity Resitant.
AB+Z signals, Incremental + Index,Operating Tenperature:-30 degree C to + 90 degree C with Line Driver JR305D
